تروس سقف الحفل من الألومنيوم في الهواء الطلق مع المرحلة المحمولة 24x15x12m

تروس سقف الحفل من الألومنيوم في الهواء الطلق مع المرحلة المحمولة 24x15x12m

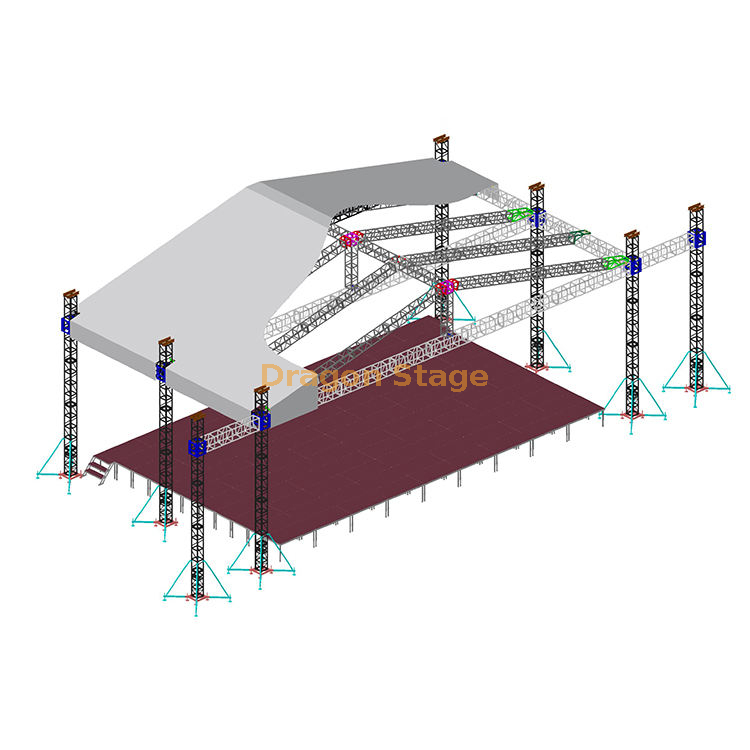

Aluminum Outdoor Concert Roof Truss with Portable Stage 24x15x12m

21.96x13.42m height 1.2-2m with 2 stairs

الكمية:
توافر الحالة:





رسالتك سلة الاستفسارات

المنتج العلامة التجارية:
Dragon Stage

Product Description

packing weight: 5600kg

packing volume: 56cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
24.00 m Beam(front)	3 sets	3.00 m	50×4.0	CS600×760	24pcs
		2.00 m	50×4.0	CS600×760	0pcs
		1.00 m	50×4.0	CS600×760	0pcs
15.00 m Beam(side)	2 sets	3.00 m	50×4.0	CS600×760	10pcs
		2.00 m	50×4.0	CS600×760	0pcs
		1.00 m	50×4.0	CS600×760	0pcs
11.00 m Pillar	6 sets	3.00 m	FALSE	CS450×450	18pcs
		2.00 m	FALSE	CS450×450	6pcs
		1.00 m	FALSE	CS450×450	0pcs
Frame Tower	Spigot Sleeve Block L				6pcs
	Steel Base L				6pcs
	Top Section L				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	2.40 m	50×3.0	CS289×289	3pcs
15.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	5pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
12.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	18pcs
		2.00 m	50×3.0	CS289×289	6pcs
		1.20 m	50×3.0	CS289×289	6pcs
12.20 m Ladder truss	12 sets	3.00 m	50×3.0	CL30,289*50	36pcs
		2.00 m	50×3.0	CL30,289*50	12pcs
		1.20 m	50×3.0	CL30,289*50	12pcs
Roof Components		roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
		roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
		Connect plate with clamp			3pcs
		Single clamp			24pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		549.36	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
3.00 m Wings Beam	2 sets	3.00 m	50×4.0	CS600×760	2pcs
		2.00 m	50×4.0	CS600×760	0pcs
		1.00 m	50×4.0	CS600×760	0pcs
11.00 m Wings Pillar	2 sets	3.00 m	FALSE	CS450×450	6pcs
		2.00 m	FALSE	CS450×450	2pcs
		1.00 m	FALSE	CS450×450	0pcs
Wings Tower	Spigot Sleeve Block L				2pcs
	Steel Base L				2pcs
	Top Section L				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

packing weight: 5900kg

packing volume: 38cbm

Item	Specification					Quantity
Aluminium assembly stage	topping: 4x8ft (1.22x2.44m)		wooden			99 pcs
	1.22m stage brace					110 pcs
	2.44m stage brace					108 pcs
	stand with extendable tube					120 pcs
	Stage adjustable base					120 pcs
Stage Stair	wooden topping	total	8	steps	adjustable to the stage height	2 pcs
